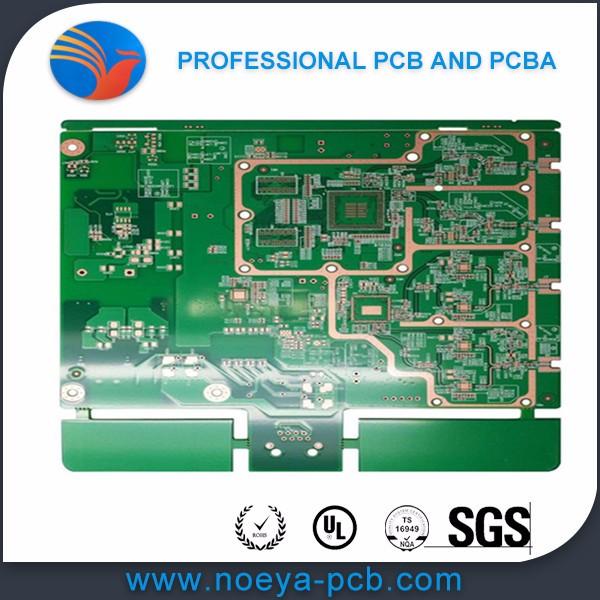

Immersion Gold electric pcb
Base Material: CEM-3
Copper Thickness: 0.3-4oz
Board Thickness: 0. 2mm-5mm
Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm
Min. Line Spacing: 0.075mm
Surface Finishing: Immersion Gold
Certificate: ISO/UL/TS16949/RoHS/TS16949
Solder mask color: Customized (green, blue, black, white, red, yellow)
silkscreen color: Customized (white, black, red, green ,customized)
Registratino (O/L): ±0.05mm
Min. Drill Size: 0.2mm
Min.Solder Mask Dam Width: 0.076mm
Copper Thickness: 0.3-4oz
Board Thickness: 0. 2mm-5mm
Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm
Min. Line Spacing: 0.075mm
Surface Finishing: Immersion Gold
Certificate: ISO/UL/TS16949/RoHS/TS16949
Solder mask color: Customized (green, blue, black, white, red, yellow)
silkscreen color: Customized (white, black, red, green ,customized)
Registratino (O/L): ±0.05mm
Min. Drill Size: 0.2mm
Min.Solder Mask Dam Width: 0.076mm
Describe
Noeya pcb glance:
Noeya pcb capability:
| Capability | Standard | Advanced |
| Laminate | FR4, FR1, CEM-3, CEM-1, Aluminum, Rigid-Flex PCB, Teflon, High-TG, Rogers, Taconic | |
| Surface Finish |
HASL(vertical & Horizontal), Lead Free HASL ENIG,ENEPIG HASL+Gold Finger OSP / Entek Immersion Tin(ISN), Immersion Silver(IAG) Carborn Ink Hard Gold(Flash Gold), Soft Gold |
|
| Min. Thickness for inner layers | 0.020''-0.125'' | 0.003''(0.07mm) |
| Board layers | 1-24 Layers | 1-24 Layers |
| Board Thickness | 0.1mm-3mm | 0.2mm-7mm |
| Copper weight | 0.5 oz-6 oz | 0.5 oz-8 oz |
| Minimum Trace Width/Spacing | 0.003''/0.003'' | 0.003''/0.003'' |
| Solder Mask Color | Green, Blue, Black, Red, Yellow, White amd customized | |
| Drill deviation | 0.004'' |
±0.002''(0.05mm) |
| PTH Hole Tolerance | 0.004'' |
±0.002''(0.05mm) |
| NPTH hole Tolerance | 0.008'' |
±0.002''(0.005mm) |
| Min. hole size | 0.004'' | 0.008''(0.02mm) |
| E-test | Flying Probe Tester/Test-Jig/X-ray/ICT/AOI/FCT | |
| Controlled Tolerance |
±3% |
±3% |
| Silkscreen Color | White, Black, Yellow, Green, Red, Blue, and customized | |
| Min. Solder Mask clearance size | 0.008 | 0.003''(0.07mm) |
| Min. silkscreen clearance size | 0.010'' | 0.06''(0.15mm) |
| IPC Class | Class 2 | Class 3 |
| Blind Vias | YES | YES |
| Buried Vias | YES | YES |
| Aspect Ratio | 8/1 | 15/1 |
| Carbon Ink | YES | YES |
| Peelable Mask | YES | YES |
| Solder Sample | YES | YES |
| First Article | YES | YES |
| Certificate | UL / SGS / ROH / ISO / TS16949 / ISO14001:2004 | |
| Acceptable file format | GERBER File, PROTEL 99 / PADS / POWER PCB / AutoCAD / EAGLE | |
Details of PCB & PCBA:
Technical requirement for pcb&pcb assembly:
---Professional Surface-mounting and Through-hole soldering Technology
---Various sizes like 1206,0805,0603 components SMT technology
---ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
---PCB Assembly With UL,CE,FCC,Rohs Approval
---Nitrogen gas reflow soldering technology for SMT.
---High Standard SMT&Solder Assembly Line
---High density interconnected board placement technology capacity.
Quote requirement for pcb&pcb assembly:
---Gerber file and Bom list
---Clear pics of pcba or pcba sample for us
---Test method for PCBA
