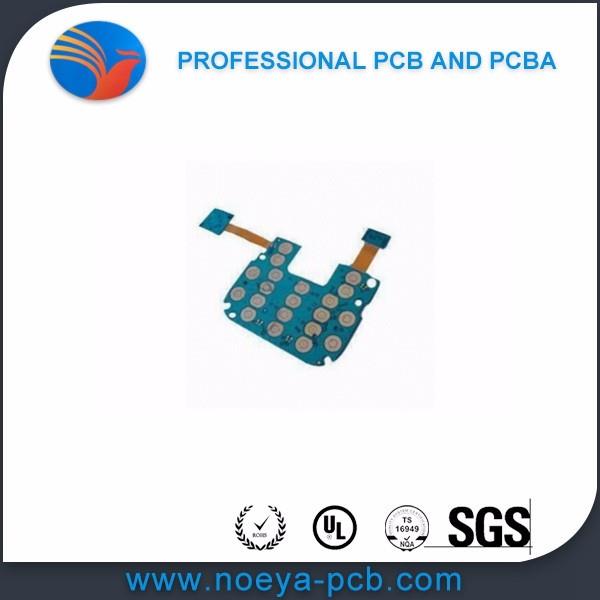

                                 flexible pcb circuit boards


                                 Base Material: FR-4 / cem-1 / Aluminum / copper based
Copper Thickness: 0.3-4OZBoard Thickness: 0.2-5.0mm
Min. Hole Size: 0.20mm
Min. Line Width: 0.1 0mm
Min. Line Spacing: 0.003"
Surface Finishing: Customized (HASL / OSP / ENIG / PTH)
Certificate: ISO/UL/TS16949/RoHS/TS16949
Solder mask color: Customized (red / blue / green / black / white)
silk screen color: Customized (black / white / blue / red)
Material: FR4 CEM1 CEM3 Hight TG
Describe
Noeya PCB products glance:


Noeya PCB Capability:


						HASL(vertical & Horizontal), Lead Free HASL

						ENIG,ENEPIG

						HASL+Gold Finger

						OSP / Entek

						Immersion Tin(ISN), Immersion Silver(IAG)

						Carborn Ink

						Hard Gold(Flash Gold), Soft Gold

						±0.002''(0.05mm)

						±0.002''(0.05mm)

						±0.002''(0.005mm)

						±3%

						±3%





					Capability


					Standard


					Advanced




					Laminate


					FR4, FR1, CEM-3, CEM-1, Aluminum, Rigid-Flex PCB, Teflon, High-TG, Rogers, Taconic




					Surface Finish






					Min. Thickness for inner layers


					0.020''-0.125''


					0.003''(0.07mm)




					Board layers


					1-24 Layers


					1-24 Layers




					Board Thickness


					0.1mm-3mm


					0.2mm-7mm




					Copper weight


					0.5 oz-6 oz


					0.5 oz-8 oz




					Minimum Trace Width/Spacing


					0.003''/0.003''


					0.003''/0.003''




					Solder Mask Color


					Green, Blue, Black, Red, Yellow, White amd customized




					Drill deviation


					0.004''






					PTH Hole Tolerance


					0.004''






					NPTH hole Tolerance


					0.008''






					Min. hole size


					0.004''


					0.008''(0.02mm)




					E-test


					Flying Probe Tester/Test-Jig/X-ray/ICT/AOI/FCT




					Controlled Tolerance








					Silkscreen Color


					White, Black, Yellow, Green, Red, Blue, and customized




					Min. Solder Mask clearance size


					0.008


					0.003''(0.07mm)




					Min. silkscreen clearance size


					0.010''


					0.06''(0.15mm)




					IPC Class


					Class 2


					Class 3




					Blind Vias


					YES


					YES




					Buried Vias


					YES


					YES




					Aspect Ratio


					8/1


					15/1




					Carbon Ink


					YES


					YES




					Peelable Mask


					YES


					YES




					Solder Sample


					YES


					YES




					First Article


					YES


					YES




					Certificate


					UL / SGS / ROH / ISO / TS16949 / ISO14001:2004





					Acceptable file format


					GERBER File, PROTEL 99 / PADS / POWER PCB / AutoCAD / EAGLE


Details of PCB & PCBA
Technical requirement for pcb&pcb assembly:
	---Professional Surface-mounting and Through-hole soldering Technology
---Various sizes like 1206,0805,0603 components SMT technology
---ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
---PCB Assembly With UL,CE,FCC,Rohs Approval
---Nitrogen gas reflow soldering technology for SMT.
---High Standard SMT&Solder Assembly Line
---High density interconnected board placement technology capacity.
Quote requirement for pcb&pcb assembly:
	---Gerber file and Bom list
---Clear pics of pcba or pcba sample for us
---Test method for PCBA
